MegaTron XK
Water Treatment Controller
The MegaTron XK makes continuous monitoring and control of industrial water systems such as cooling towers, boilers and waste water easy. Read full description…
Control and Monitor
| Conductivity | pH / ORP |
| Make-up Conductivity | Temperature |
| Service Reports | Sensor and Alarm History |
| Flow | PPM Feed |
| 4-20mA Inputs and Outputs | Feed Timers |
| Up to 8 Digital Inputs | Up to 5 Control Relays |
Additional Information
Description
Description

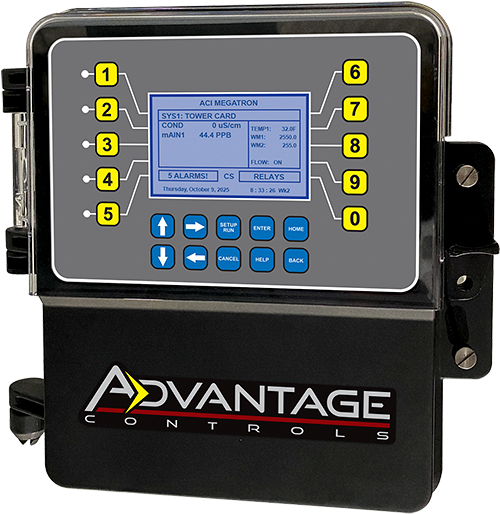

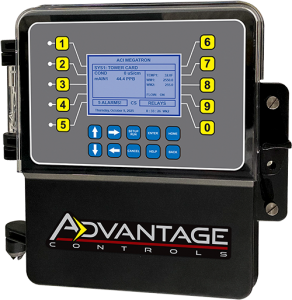

The MegaTron XK water treatment controller makes continuous monitoring and control of industrial water systems such as cooling towers, boilers and waste water easy with a user friendly ATM style menu and a large 16 line full graphic display that allows complete programming from the keypad. Using a simple system approach an individual MegaTron XK can be specifically configured with the functions your application requires.
MegaTron XK units have all the features and functions of the larger MT unit in a smaller enclosure with:
- 5 control relays and digital inputs
- 2 water meter inputs
- Internet Communications
- 4-20mA I/O and many other options
Features:
- 1 System or Dual Boiler Control
- USB History Access
- USB Configure Cloning
- Simple ATM Style Menu
- Everything Keypad Settable
- On Screen History Graphs
- Multi-Level Security
- Internet Communications
MegaTrons Side-By-Side
 |  |
| MegaTron XK | MegaTron MT |
| (1) system or (2) boilers | (1-4) independent systems |
| ATM style menu | Touch screen display |
| (5) control relays | (20) control relays |
| Conductivity / pH / ORP | Conductivity / pH / ORP |
| Makeup conductivity | Makeup conductivity |
| Temperature | Temperature |
| Feed & flow control / monitoring | Feed & flow control / monitoring |
| (2) water meter inputs | (8) water meter inputs |
| (8) 4-20 mA input signals | (8) 4-20 mA input signals |
| (4) 4-20 mA output signals | (8) 4-20 mA output signals |
| BACnet / MODBUS options | BACnet / MODBUS options |
| Smaller form factor | Larger, easy access cabinet |
Downloads
| Data Sheet | Manual | |
| MegaTron XK |  | |
