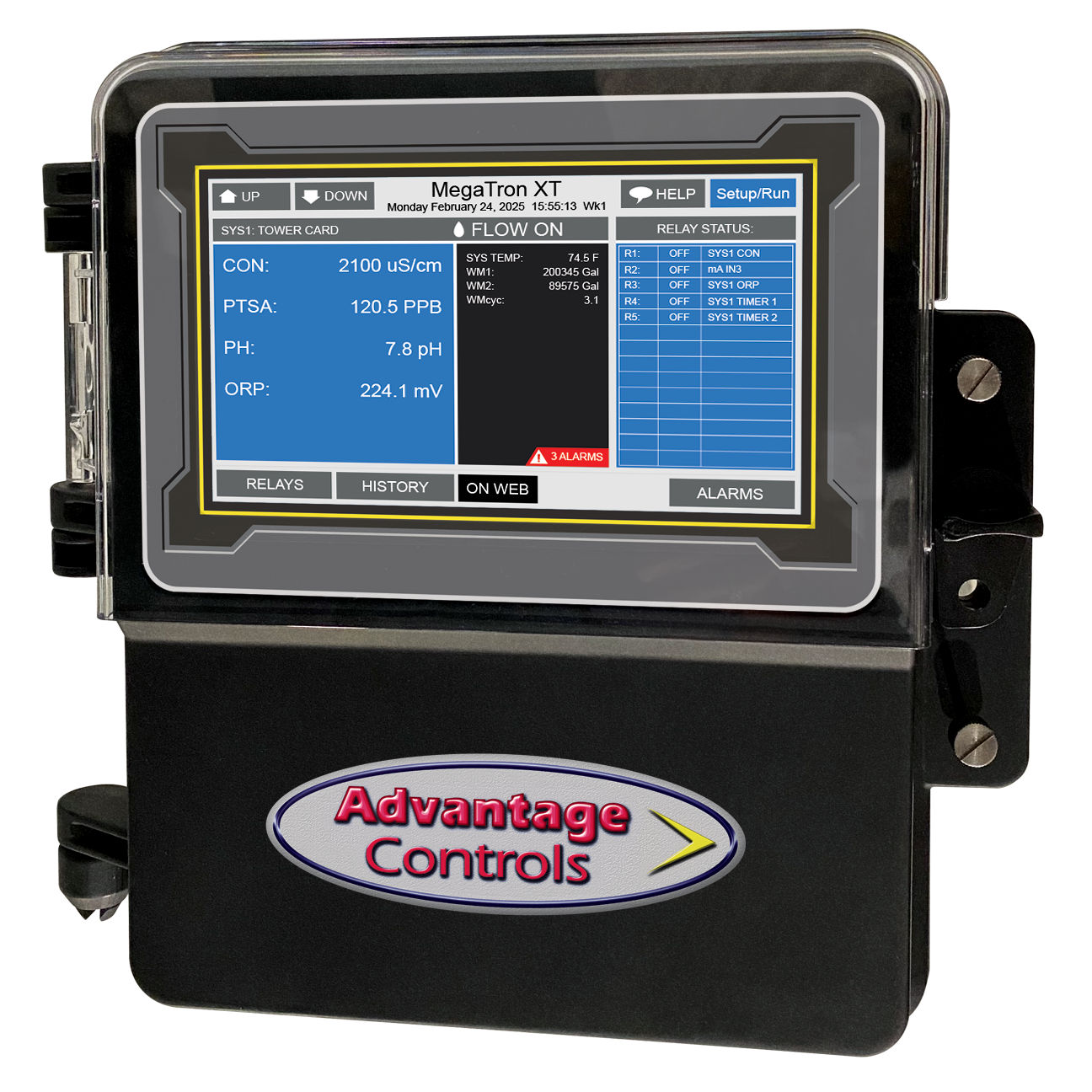

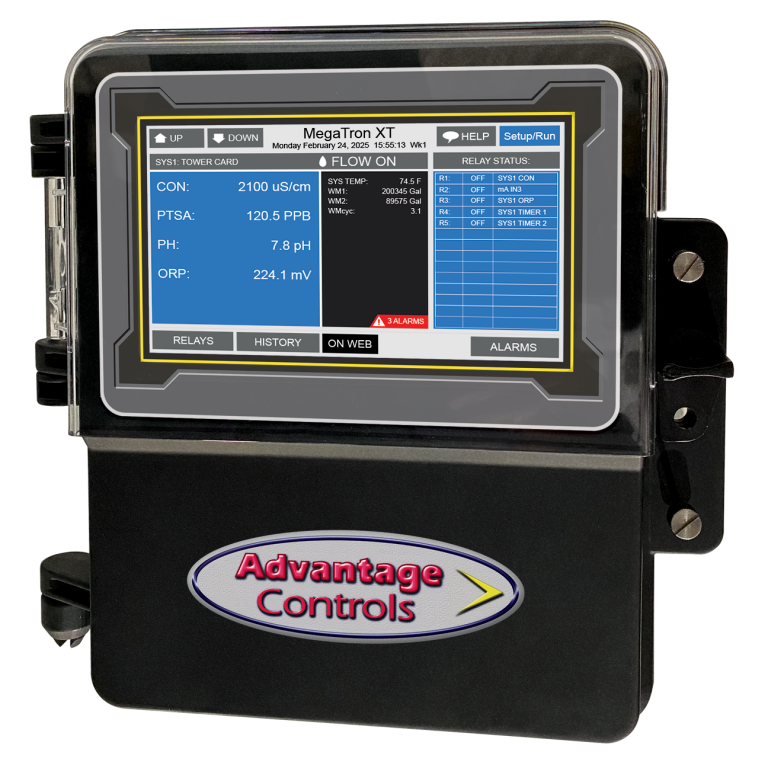

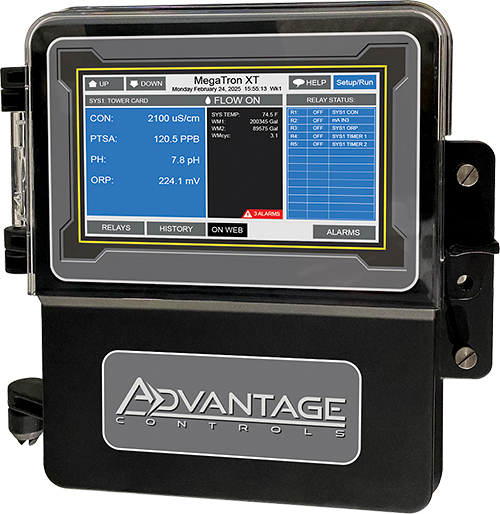

MegaTron XT
Single-System, Touch Screen Controller
The MegaTron XT makes continuous monitoring and control of industrial water systems such as cooling towers, boilers and waste water easy with its large full graphic, user-friendly, touch screen display. Read full description…
Control and Monitor
| Conductivity | pH / ORP |
| Make-up Conductivity | Temperature |
| Service Reports | Sensor and Alarm History |
| Flow | PPM Feed |
| 4-20mA Inputs and Outputs | Feed Timers |
Additional Information
Description
Description
The MegaTron XT touchscreen controller is the latest innovation in our highly acclaimed MegaTron product line.
Units can be configured to control a wide range of digital and analog inputs. Advanced relay logic and customization lets you configure a unit to meet your specific system needs.
XT touch units can control a single tower, boiler, wastewater or other industrial application and provide web based communications and reporting with WebAdvantage.
Features:
- Single System Control
- BACnet, Modbus and Lonworks communications options
- Internet Communication
- Multi-Level Security
- USB History Access
- USB Configuration Cloning
- Simple Touchscreen Style Menu
- Everything Keypad Settable
- On Screen History Graphs
- Large Customizable Display
- Locking NEMA-4X style enclosure
- Hinged thumb screw panel for easy access to internal components
- Card slots for easy field upgrades
MegaTrons Side-By-Side
 |  |
| MegaTron XS | MegaTron XT |
| (1) system or (2) boilers | (1) system or (2) boilers |
| ATM style menu | Touch screen display |
| (5) control relays | (5) control relays |
| Conductivity / pH / ORP | Conductivity / pH / ORP |
| Makeup conductivity | Makeup conductivity |
| Temperature | Temperature |
| Feed & flow control / monitoring | Feed & flow control / monitoring |
| (2) water meter inputs | (8) water meter inputs |
| (8) 4-20 mA input signals | (8) 4-20 mA input signals |
| (4) 4-20 mA output signals | (8) 4-20 mA output signals |
| BACnet / MODBUS options | BACnet / MODBUS options |
| Smaller form factor | Larger, easy access cabinet |
Downloads
| Data Sheet | |
| MegaTron XT |  |
