Glycol Feeders
Introduce chemical to your closed-loop system.
Our glycol feeders maintain a consistent pressure in closed loop systems automatically feeding based on a pressure drop. Read full description…
Additional Information
Our glycol feeders maintain a consistent pressure in closed loop systems automatically feeding based on a pressure drop. Digitally displays the actual pressure of the loop and has a user settable control point for pump activation and pressure relief.

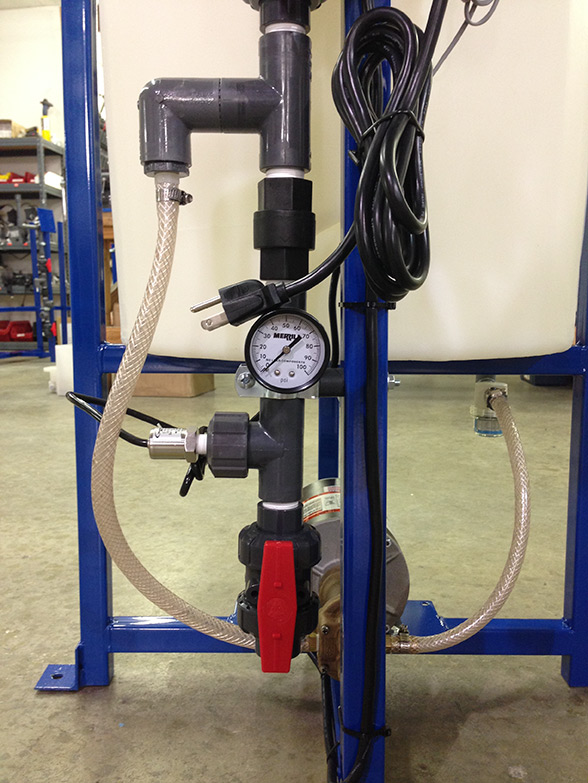

The feeder is constructed on a rugged 3mil powdercoated steel frame with a polyethylene tank, high flow feed pump, prewired controller, low level cut-off, audible alarm, motor starter/high amp relay and preplumbed piping assembly with pressure gauge, pressure transducer, back check and relief valve.
Optional: Dry contact output for low tank level and pump on, plus BACnet and ModBus compatibility.
Key Features
- Digitally Displayed Pressure
- Simple Set Point Control
- Low Level Pump Cut Off
- Audible Alarm
- High Flow Feed Pump
- Preplumbed and Prewire
- ETL Approved (XS models)
- 3mil Powdercoated Steel Frame
- Multi System
- Optional BMS Interface
Downloads
| Data Sheet | Manual | |
| Glycol Feeder |  | |

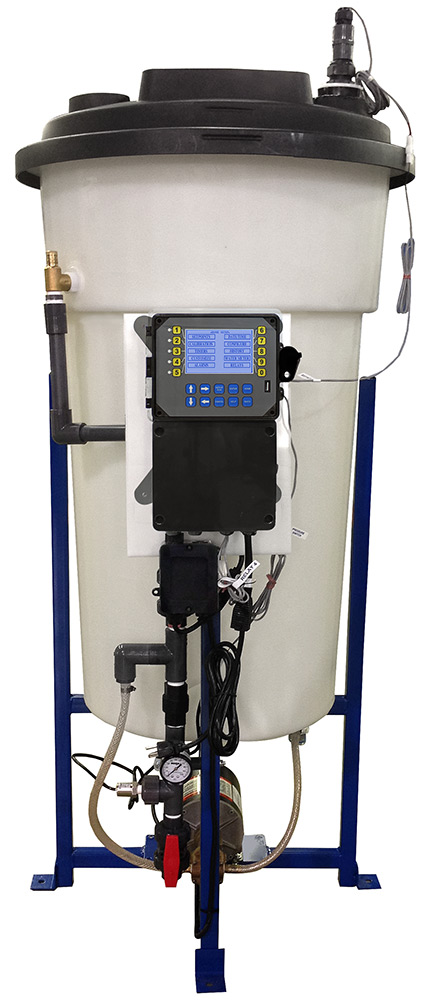

| Glycol Feeder w/ MegaTron XS | | |

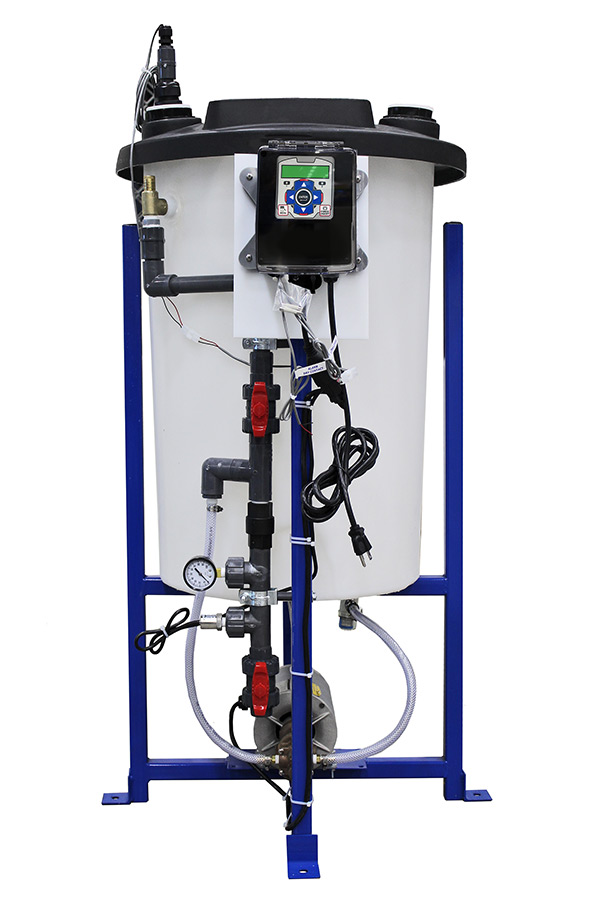

| Glycol Feeder w/ NanoTron | | |
| Economy Glycol Feeder | | |
