Industrial Boiler
Water Treatment Equipment
Simplify boiler water treatment with controllers, blowdown packages, sample-conditioning equipment and sensors engineered for reliable monitoring and control — as individual components or complete integrated systems.
Industrial Boiler
Water Treatment Equipment
Simplify boiler water treatment with controllers, blowdown packages, sample-conditioning equipment and sensors engineered for reliable monitoring and control — as individual components or complete integrated systems.

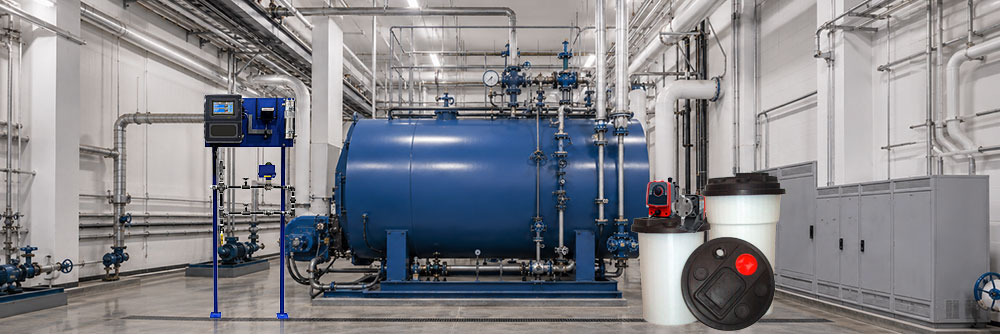

Build a Complete Water Treatment System
See where controllers, blowdown equipment, sample-conditioning components and sensors fit within a typical boiler water treatment installation. Select a component to explore products and technical literature.
Monitors conductivity and controls blowdown and chemical feed.
Factory-assembled probe and blowdown valve configurations that simplify piping.
Cools boiler water for safer sampling and stable sensor measurement.
and condensate monitoring.
Accurately feeds treatment chemicals into the boiler system.
Measures dissolved-solids concentration to drive automatic blowdown.
Boiler Water Treatment Equipment
Boiler Controllers
Advantage Controls offers boiler controllers for applications ranging from straightforward conductivity-based blowdown control to advanced, multi-parameter water treatment systems. Select a controller below or use our online System Builder to configure the right model and options.
MegaTron MT
A flexible, multi-system controller for boiler blowdown, chemical-feed and water treatment monitoring applications
MegaTron XT
An advanced touchscreen controller offering flexible monitoring, control, communications and data-management capabilities.
MegaTron XK
A configurable controller with expandable inputs, outputs and communication options for demanding water treatment applications.
NANOXL
An economical conductivity controller with programmable timers and multiple relay outputs for boiler water treatment control.
Nanotron
A compact, cost-effective controller for conductivity-based boiler blowdown and chemical-feed applications.
Build Your Boiler Control System Online
Use our self-service System Builder to configure and quote a turn-key boiler water treatment equipment package - controllers, valves, sample coolers and more.
Boiler Accessories
Complete your boiler water treatment installation with factory-engineered blowdown packages, sample-conditioning equipment, valves and sensors. These products reduce field assembly, simplify installation and provide an organized approach to boiler-water monitoring and control.

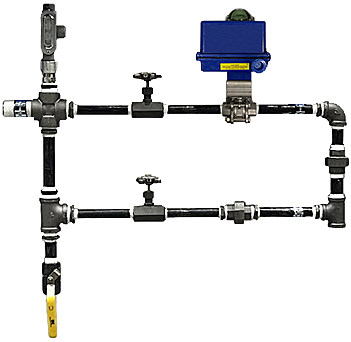

Boiler Valve Packages
Factory-assembled conductivity probe and blowdown valve configurations that simplify piping and reduce field installations.

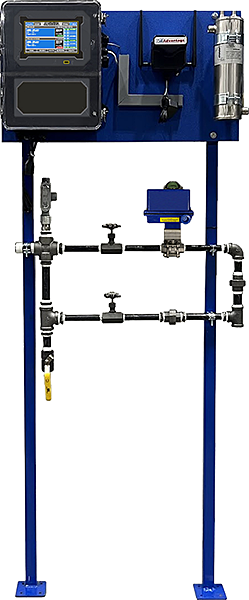

Boiler Valve Stands
Free-standing, pre-plumbed platforms for mounting boiler blowdown equipment, conductivity probes and controllers.

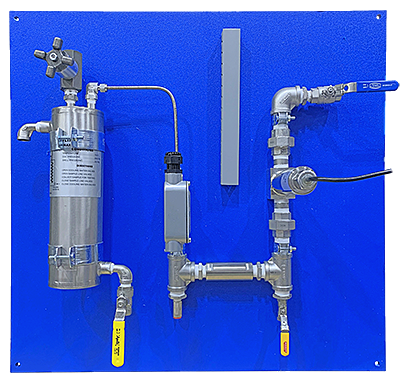

Boiler Trace Sensor Panels
Integrated sample-conditioning panels designed to support conductivity, tracer and other compatible boiler-water measurements.
Boiler Sample Cooler
Stainless-steel sample coolers that reduce boiler-water temperature for safer sampling and more stable sensor measurements.

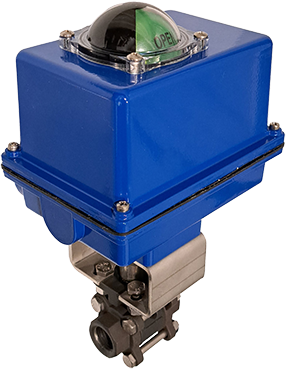

Blowdown Valves
Durable motorized and solenoid valves designed for automatic surface blowdown control.
Chemical Metering Pumps
Reliable, adjustable chemical metering pumps for accurately feeding treatment chemicals in boiler water applications.

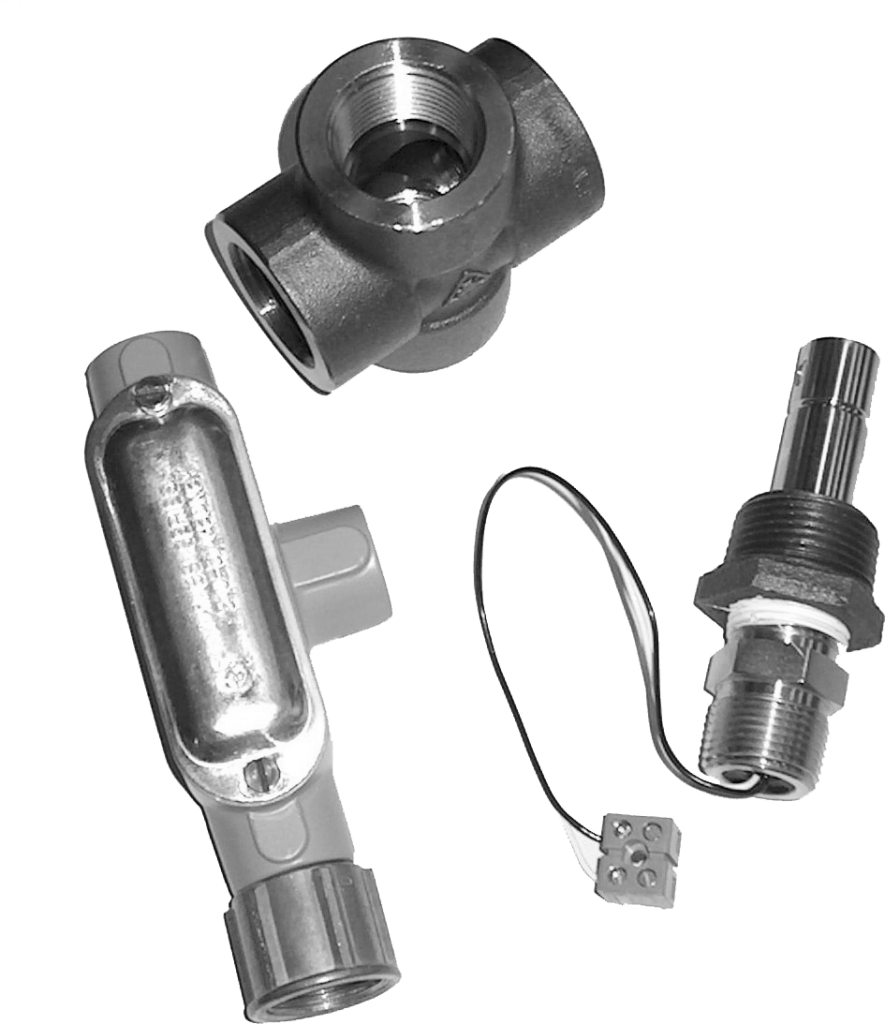

Boiler Water Sensors
Conductivity, dissolved oxygen, sulfite, fluorescent tracer and other water-quality sensors for boiler, makeup, feedwater and condensate-return monitoring.
Boiler Water Treatment Resources
How does automatic boiler blowdown work?
As steam is produced, dissolved solids remain in the boiler water and become increasingly concentrated. A boiler blowdown controller measures conductivity as an indicator of this concentration. When conductivity reaches the programmed setpoint, the controller activates the surface blowdown valve, and blowdown continues until conductivity returns to the desired range. Conductivity-based control lets the system respond to actual boiler-water conditions instead of relying on manual adjustments or fixed blowdown schedules.
What are the benefits of conductivity-based control?
- Improve consistency of boiler-water chemistry
- Optimize cycles of concentration
- Reduce unnecessary blowdown
- Conserve treated makeup water and heat energy
- Reduce operator intervention
- Limit conditions that contribute to scale, foaming and carryover
- Improve alarm and operating-history visibility
Why use prefabricated boiler equipment?
Field-built boiler blowdown and sampling assemblies require contractors to select, mount and connect numerous components. Prefabricated valve packages, valve stands and sensor panels consolidate these components into organized, factory-assembled systems — reducing installation labor, simplifying commissioning, improving service access and helping standardize equipment across multiple boiler rooms or facilities.
How do I choose the right boiler water treatment equipment?
- Boiler operating pressure
- Continuous or intermittent sampling requirements
- Blowdown valve type
- Sample temperature and pressure
- Required sensors and control functions
- Communication and remote-access requirements
- Available wall or floor space
Use the Advantage Controls System Builder to configure a controller, or contact our team for help selecting a complete boiler water treatment solution.
| Data Sheet | Manual | |
| Boiler Valve Stand |  |
|
| Boiler Valve Package (AVP) | |
|
| Boiler Valve Connections | |
|
| Boiler Trace Sensor Panel (BTP) | |
|
| Boiler Savings | |
|
| LBC-SS Sample Cooler | |
Build a Better Boiler Water Treatment System
From configurable controllers to prefabricated blowdown and sample-conditioning assemblies, Advantage Controls can help simplify your next boiler water treatment installation.
